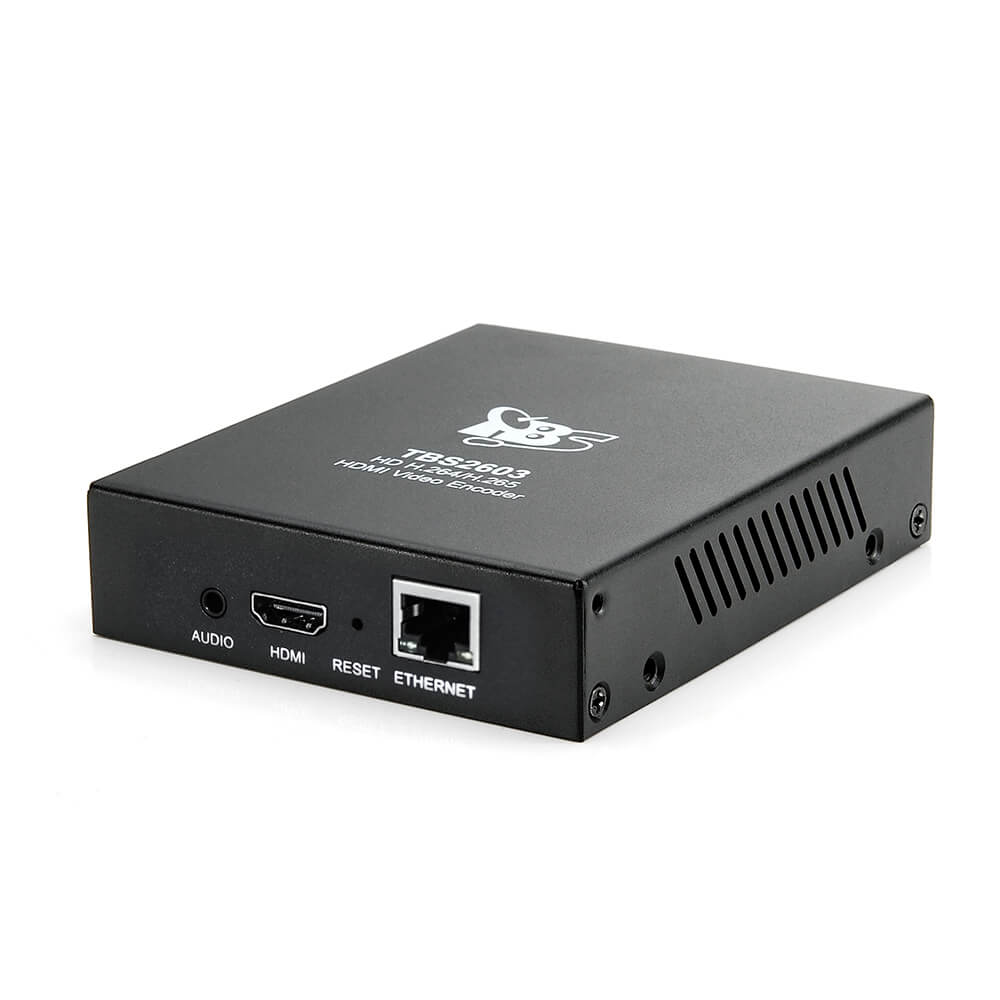

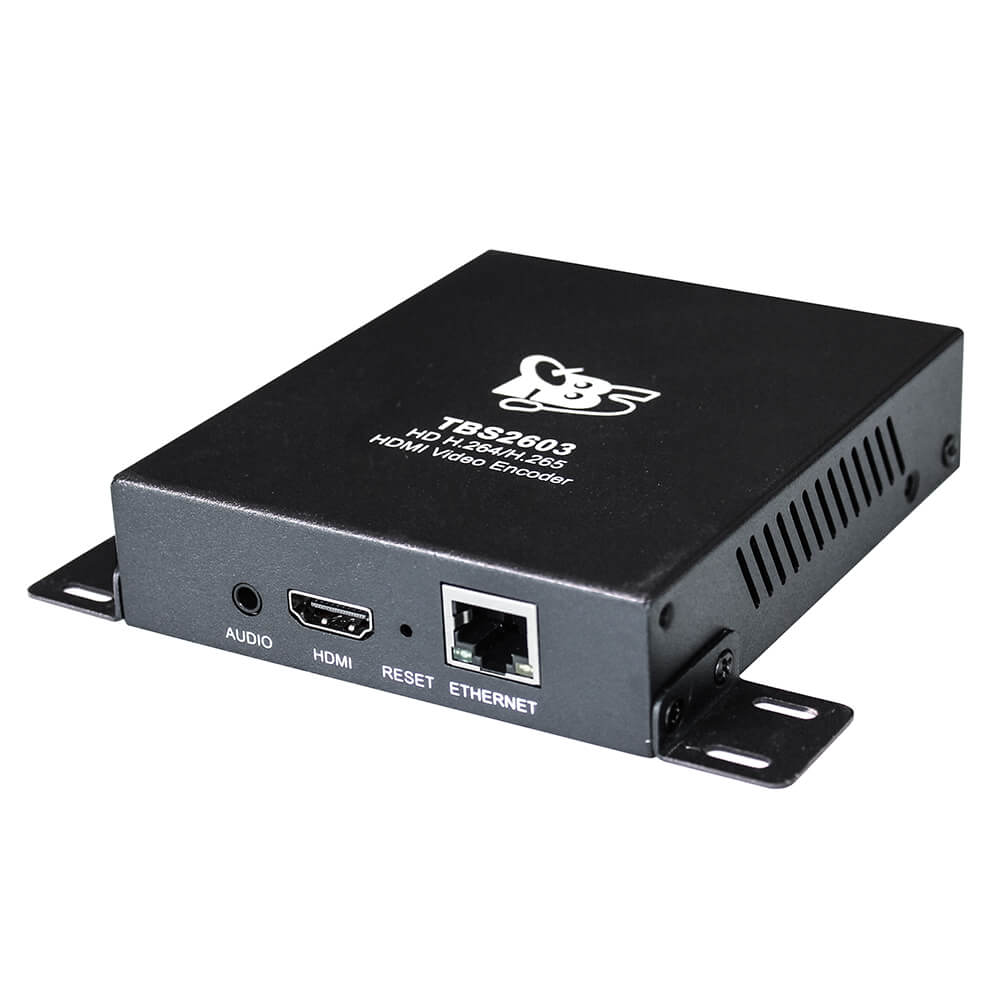

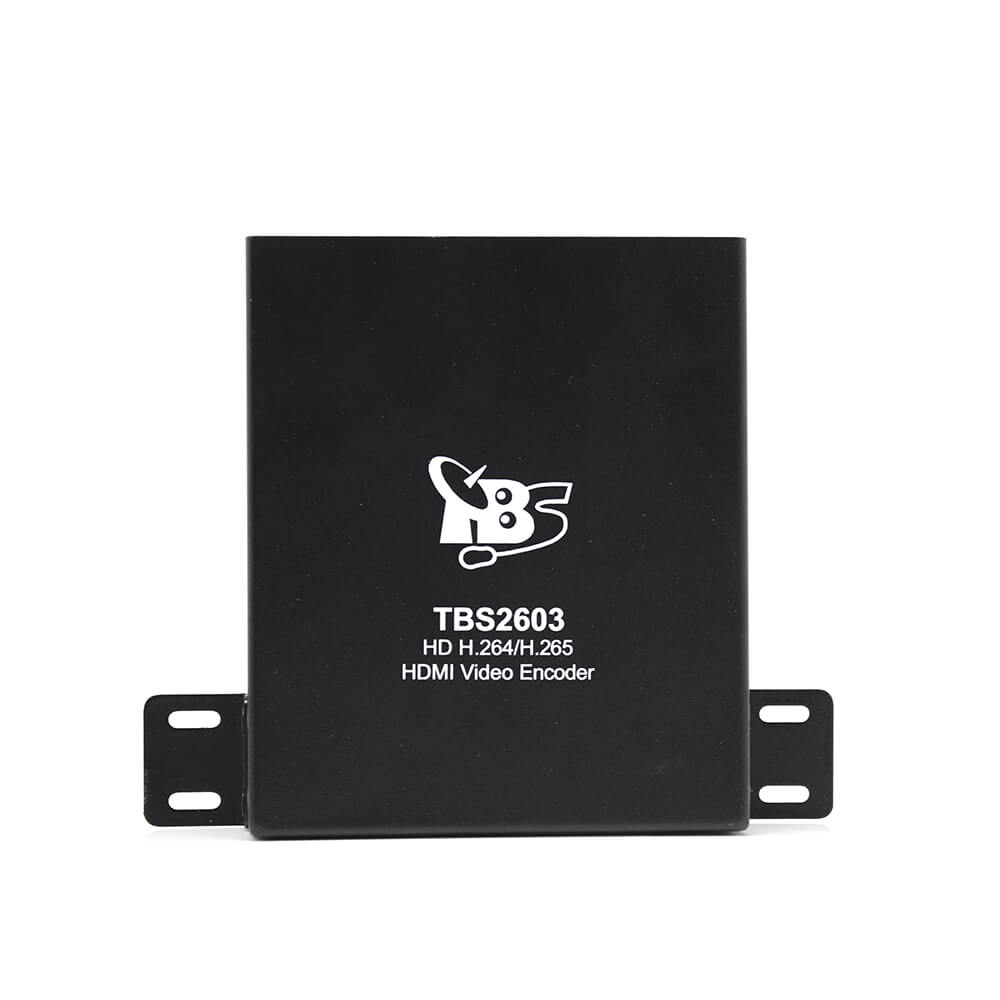

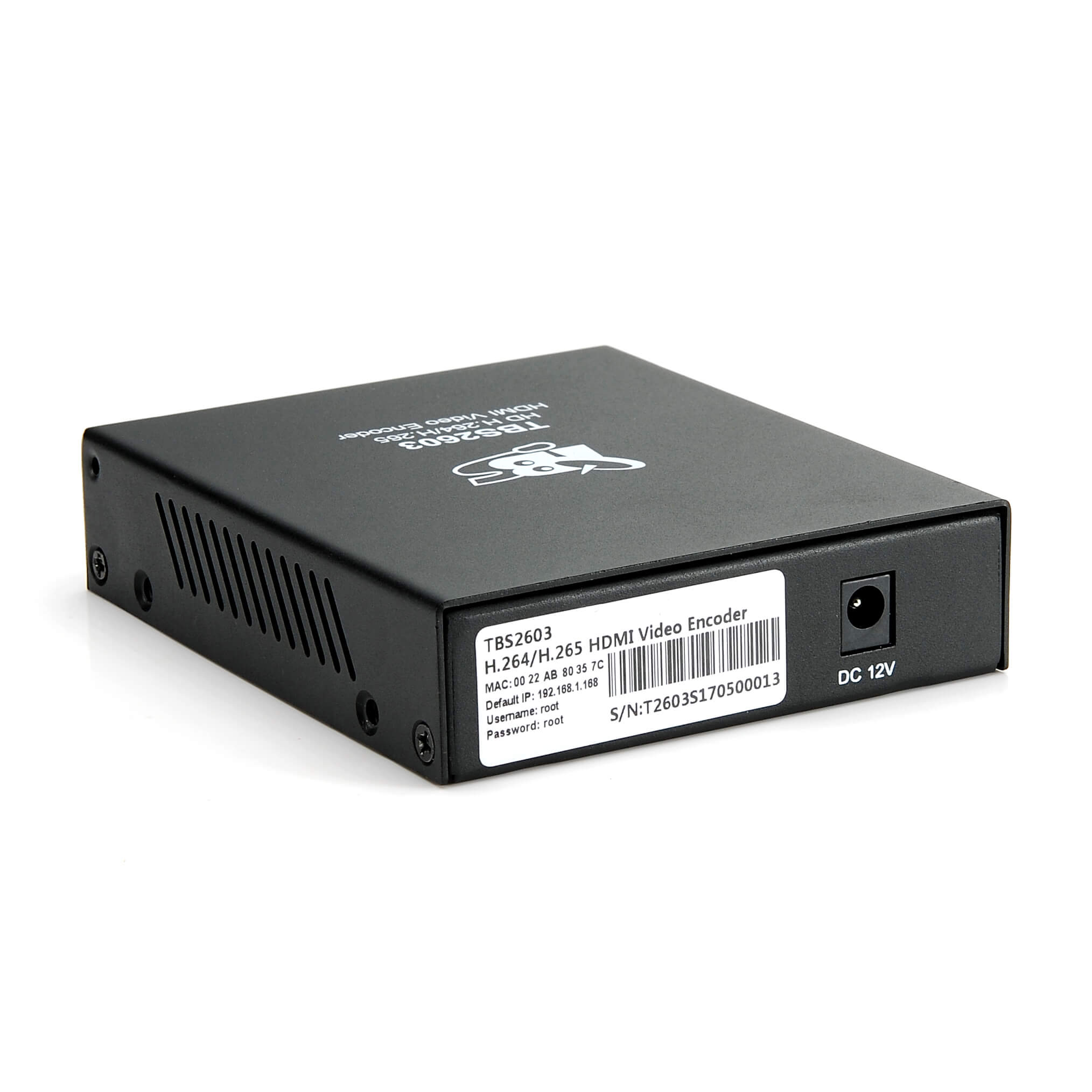

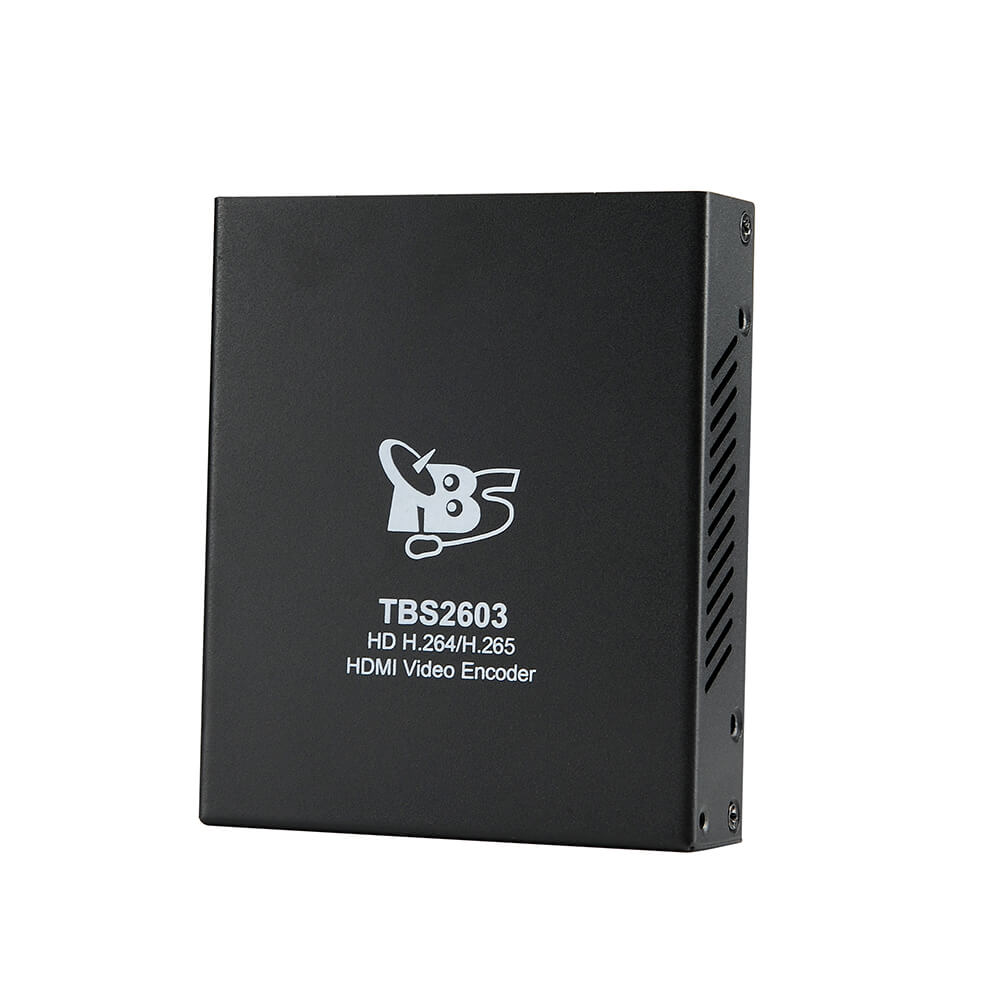

TBS2603 HD H.264/H.265 HDMI Video Encoder

Features:

• Support multiple equipments display at the same time on a computer
• Support direct network connection without HD capture card
• Main stream and secondary stream can use different network protocols for transmission
• Low Power consumption, less than 6W

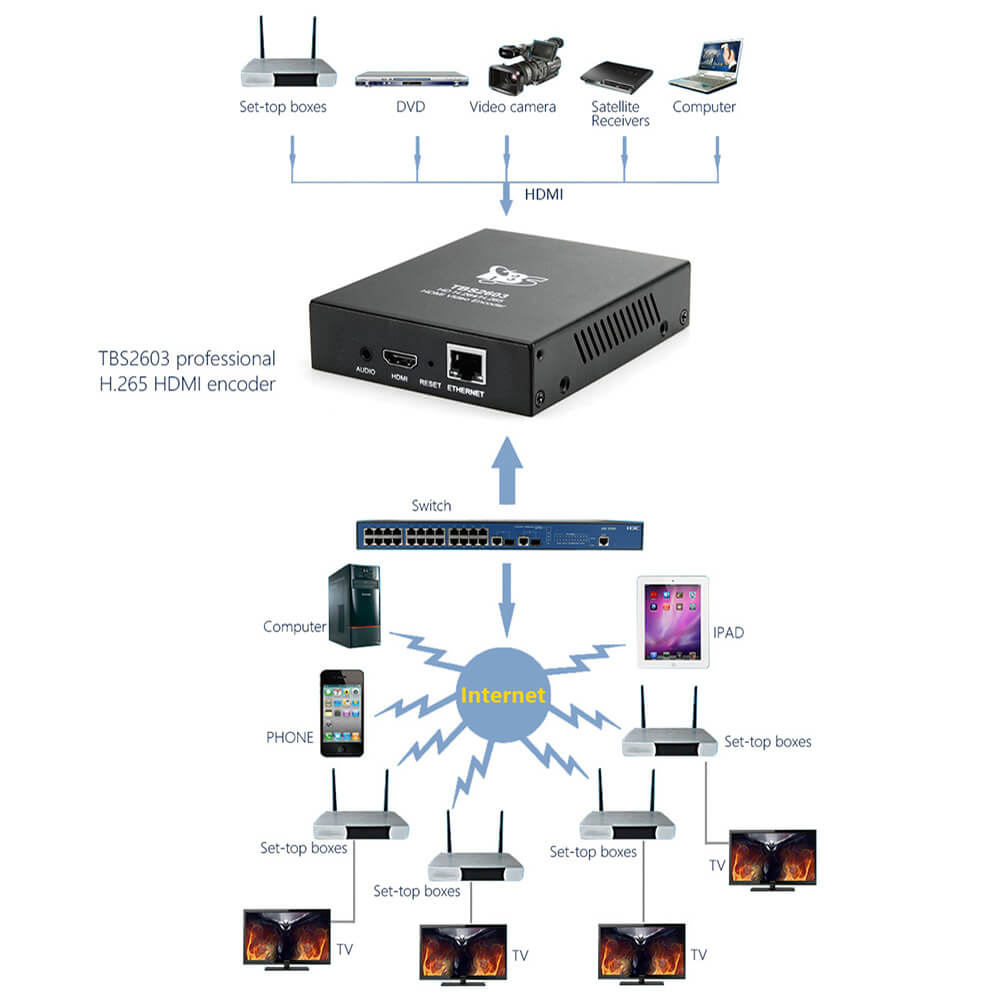

Application:

• IPTV
• Digital Signage
• Video Conference
• Replace HD Video Capture Card
• Hotel TV system
• Live Broadcast
• Teaching/Campus Broadcast
• Recording System
• NVR (Net Video Recorder)

Specification:

• Video:
  • Input: 1x HDMI (1.3a);
  • HDMI Resolution:1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc.
  • Encoding: BASELINE PROFILE (for H.264 and H.265) / MAIN PROFILE (for H.264 only)/ HIGH PROFILE (for H.264 only)
  • Data Rate: 0.8Mbps~12Mbps;
  • Rate Control: CBR/VBR, 16KBIT/S~12MBIT/S
  • Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening.

• Audio:
  • Encoding: AAC, MP3;
  • Sampling rate: Auto;
  • Bit-rate: 32K/48K/64K/96K/128K/160K/192K;
  • Sampling precision: 16 bit;
  • Data Rate: 64Kb/s ~ 384Kb/s;

System:

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX
• Ethernet/RJ45: 1000 Base-T Ethernet interface;
• Protocol: RTSP/RTP/RTMP, HTTP, UDP

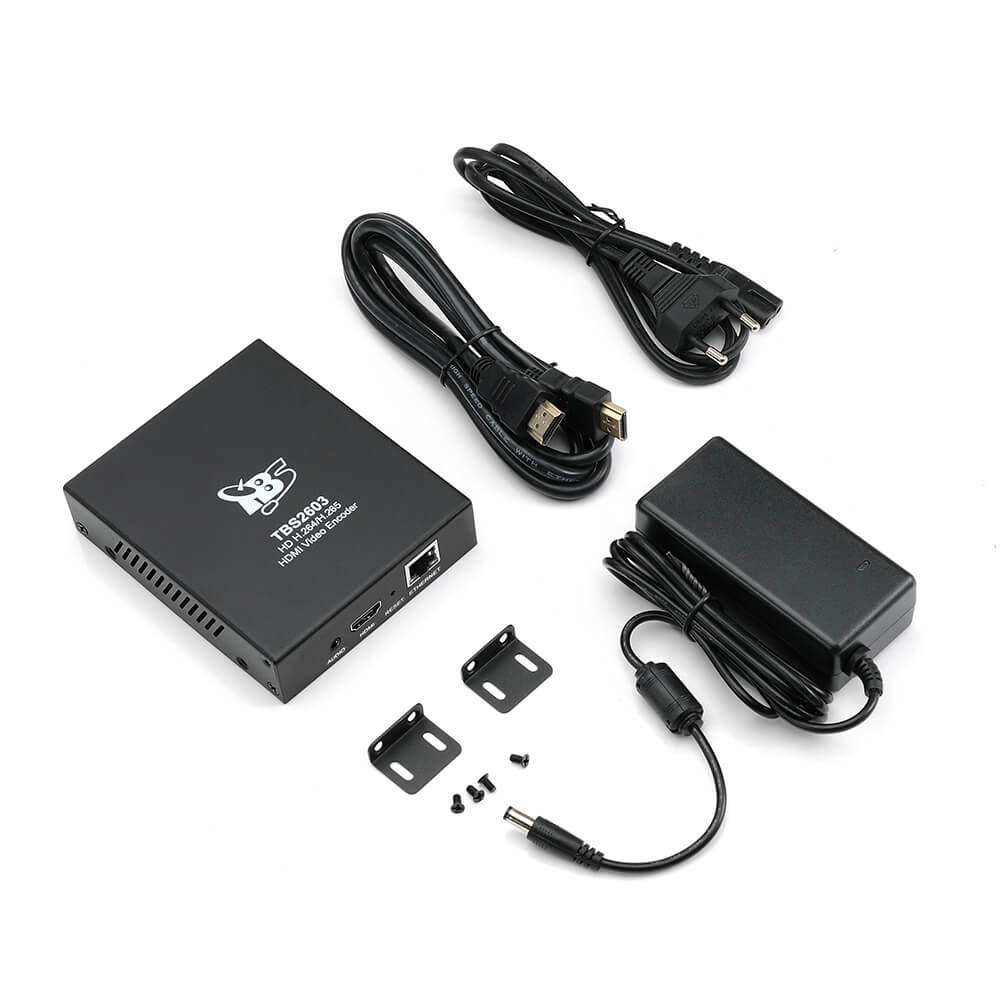

Package Contents

• 1x TBS2603
• 1x AC line
• 1x Power adapter
• 1x HDMI cable

• TBS2603 HD H.264 H.265 HDMI Video Encoder DataSheet PDF

• TBS2603 HD H.264 H.265 HDMI Video Encoder User Munual PDF
