    TBS2602V2 H.264/H.265 3G-SDI to IP Video Encoder

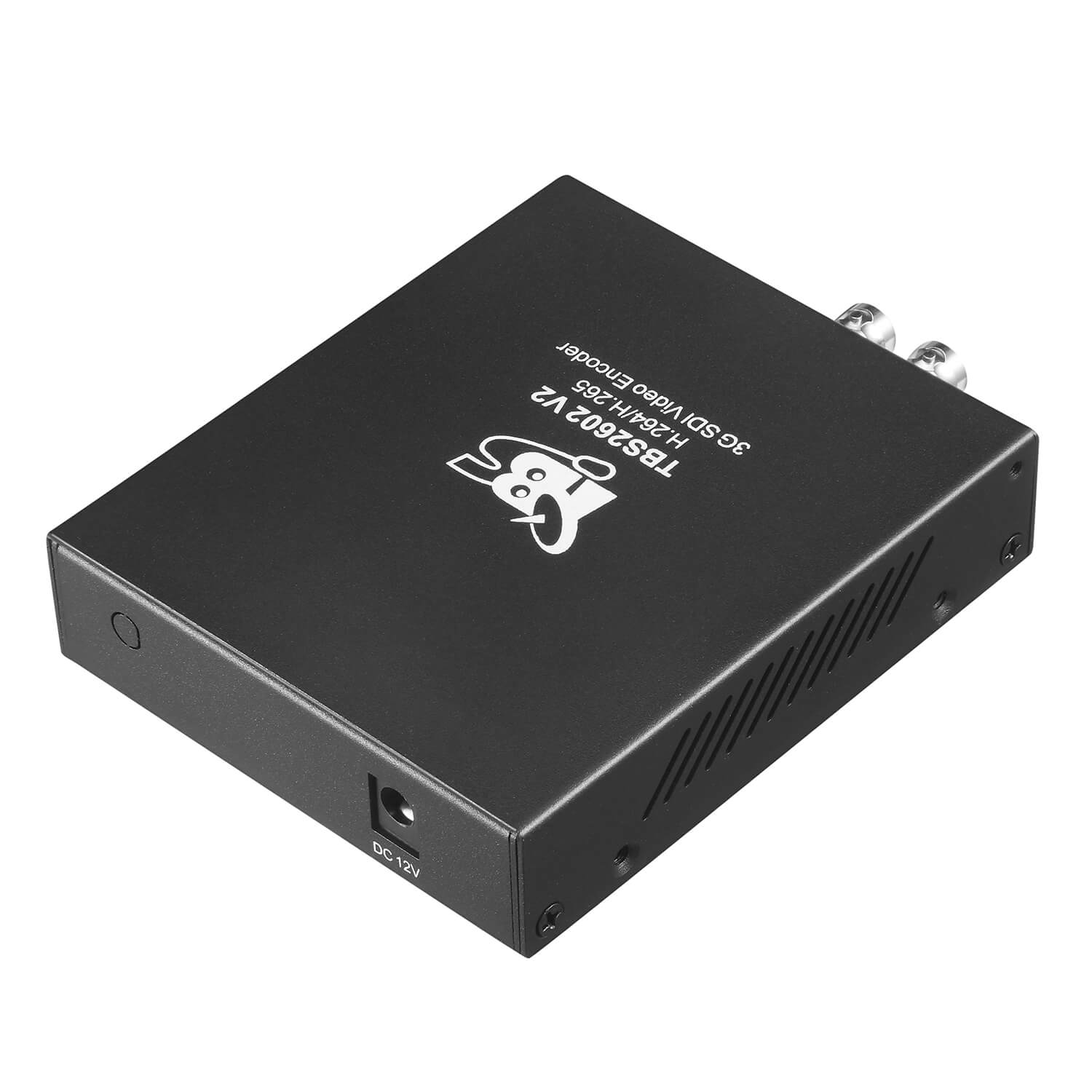

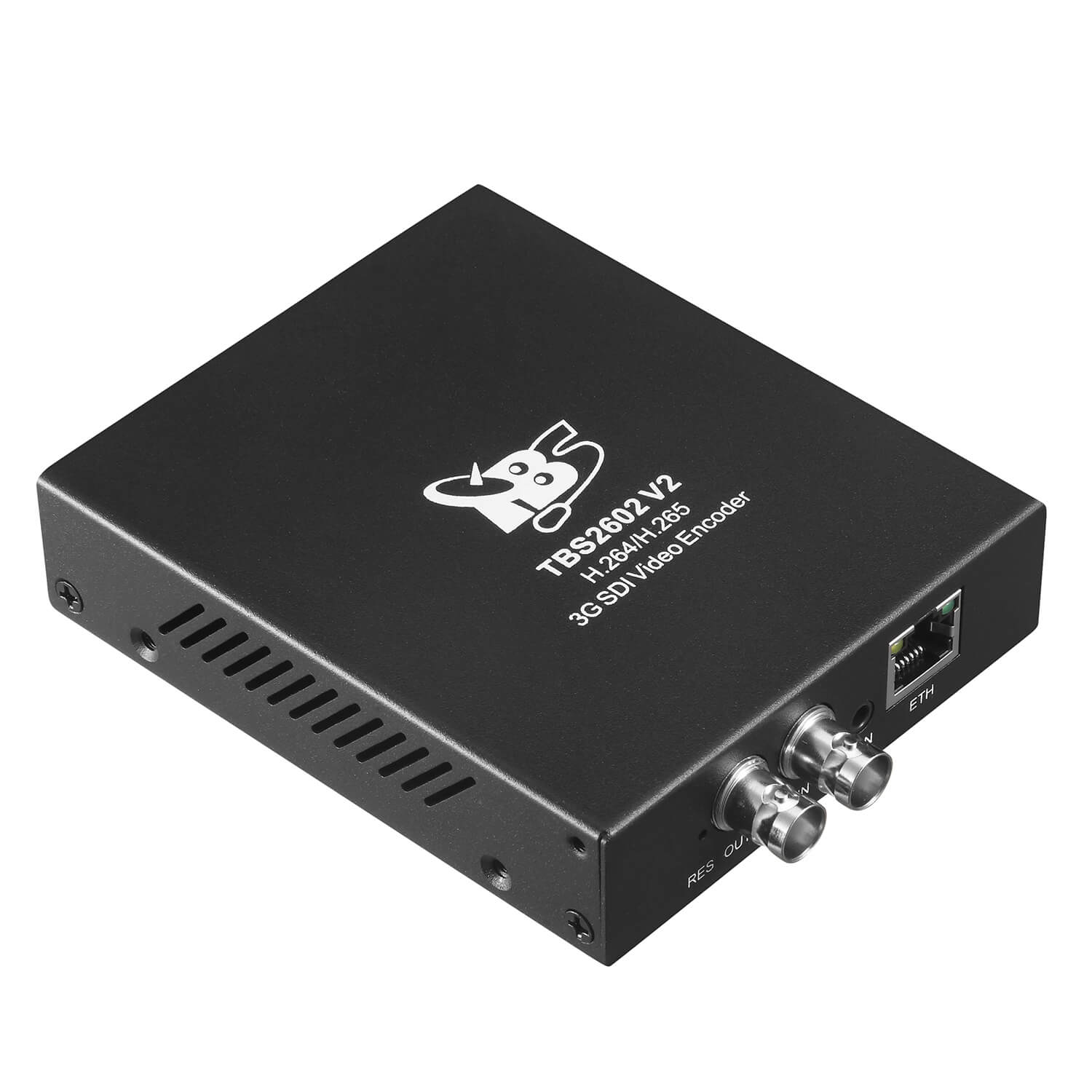

    TBS2602V2 3G-SDI Video Encoder is a professional high-definition video encoder that is equipped with one channel 3G-SDI input, dual H.264/H.265 encoded streams output via RJ45 interface. What’s more, it supports SDI loop out, which can be very easy to check the status of SDI input.

    With any 3G-SDI video source, SDI embedded audio and 3.5mm jack Line in audio, TBS2602V2 can generate H.264/H.265 & AAC-LC / AAC-HE encoded streams compliant with HLS (m3u8), HTTP, RTSP, SRT, RTP/UDP unicast & multicast, RTMP/RTMPS, ONVIF protocols.

    TBS2602V2 is ideal for streaming to various media streaming servers (e.g. Wowza, Read5, Flussonic and FMS) or online live broadcast platforms (e.g. Youtube, Twitch, Facebook, Vimeo, Ustream, Livestream, Streamspot and Dacast) over IP in real time.

    Features

    • 1 channel 3G-SDI input and encode to 1920x1080p@60fps at maximum
    • SDI audio embedded input supports up to 4 stereo audio tracks
    • Support audio Line in through 3.5mm Jack
    • Support SDI loop out
    • Support H.265/HEVC and H.264/AVC encode
    • Support 2 streams out: Main stream & sub stream
    • Support HTTP, HLS (m3u8), RTSP, SRT caller & listener, RTP/UDP unicast & multicast, RTMP/RTMPS, ONVIF output
    • Support OSD overlay: inserting text / logo into the video
    • Flexible and friendly webpage control
    • Support 7x 24h stable working

    Applications

    TBS2602V2 3G-SDI video encoder is widely used in IPTV, broadcast, video conference, remote education, health care, news interview, IP video surveillance and other industries.

    Connection Diagram

    Specification

    Model NO. TBS2602V2
    Model Name 3G-SDI Video Encoder

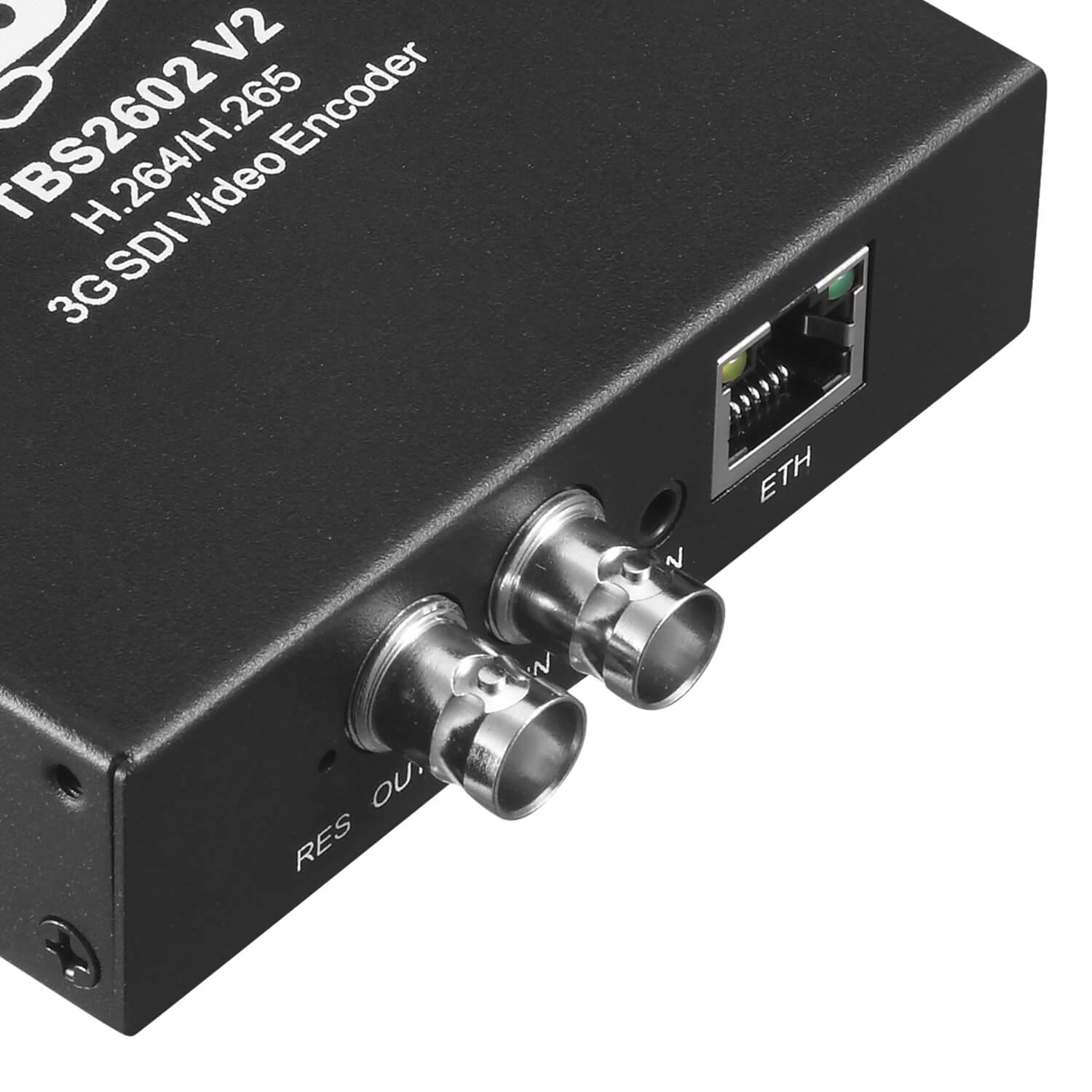

    SDI In 1x SDI (BNC Female)
    SDI Loop Out 1x SDI (BNC Female)
    Video
    Video Input SD-SDI (SMPTE 259): 480i, 576i
    HD-SDI (SMPTE 292): 1920x1080i_60/50hz, 1920x1080p_30/25/24hz, 720p_60/50hz
    3G-SDI (SMPTE 242): 1920x1080p_60/50hz Level A & Level B
    Video Encode Size auto, 1920x1080, 1680x1056, 1280x720, 1024x576,
    720x576, 720x480, 704x576, 640x480, 640x360
    Video Output 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps,
    720x576p@30fps, 640x480p@30fps etc.
    Video Codec H.264, H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H264: Level 4.2; H265: Level 4.1
    Bitrate Control CBR, VBR, EVBR
    Frame Rate 5 ~ 60fps
    Key Interval (GOP) 5 ~ 180fps
    GOP Structure IPPP
    Bitrate 300 ~ 20000Kbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported, force to do de-interlace when i (interlace) input
    Audio:
    Audio Input SDI embedded: Supports up to 4 stereo audio tracks (8 mono audio channels), channel 1-2, 3-4, 5-6, 7-8
    Line in (Jack 3.5mm)
    Audio Codec AAC-LC, AAC-HE, MP2
    Audio Bitrate 24/32/44.1/48/64/96/128/160/192/256Kbps
    Audio Resample 48, 44.1, 32(Khz)
    System:
    Control Interface web GUI
    Recommended Browser Google Chrome, Firefox, Microsoft Edge etc.
    Ethernet / RJ45 1000M Base-T Ethernet Interface
    Protocols HTTP, HLS (m3u8), RTSP, SRT caller & listener, RTP/UDP unicast & multicast, RTMP/RTMPS, ONVIF
    General Spec.:
    Power Consumption 5 Watt
    Working Environment Operating temperature: 0 to 60 °C
    Storage temperature: –20 to 70 °C
    Relative Humidity: 5% to 90% (non-condensing)
    Net Weight 330g
    Size 114mm x 96mm x 27mm

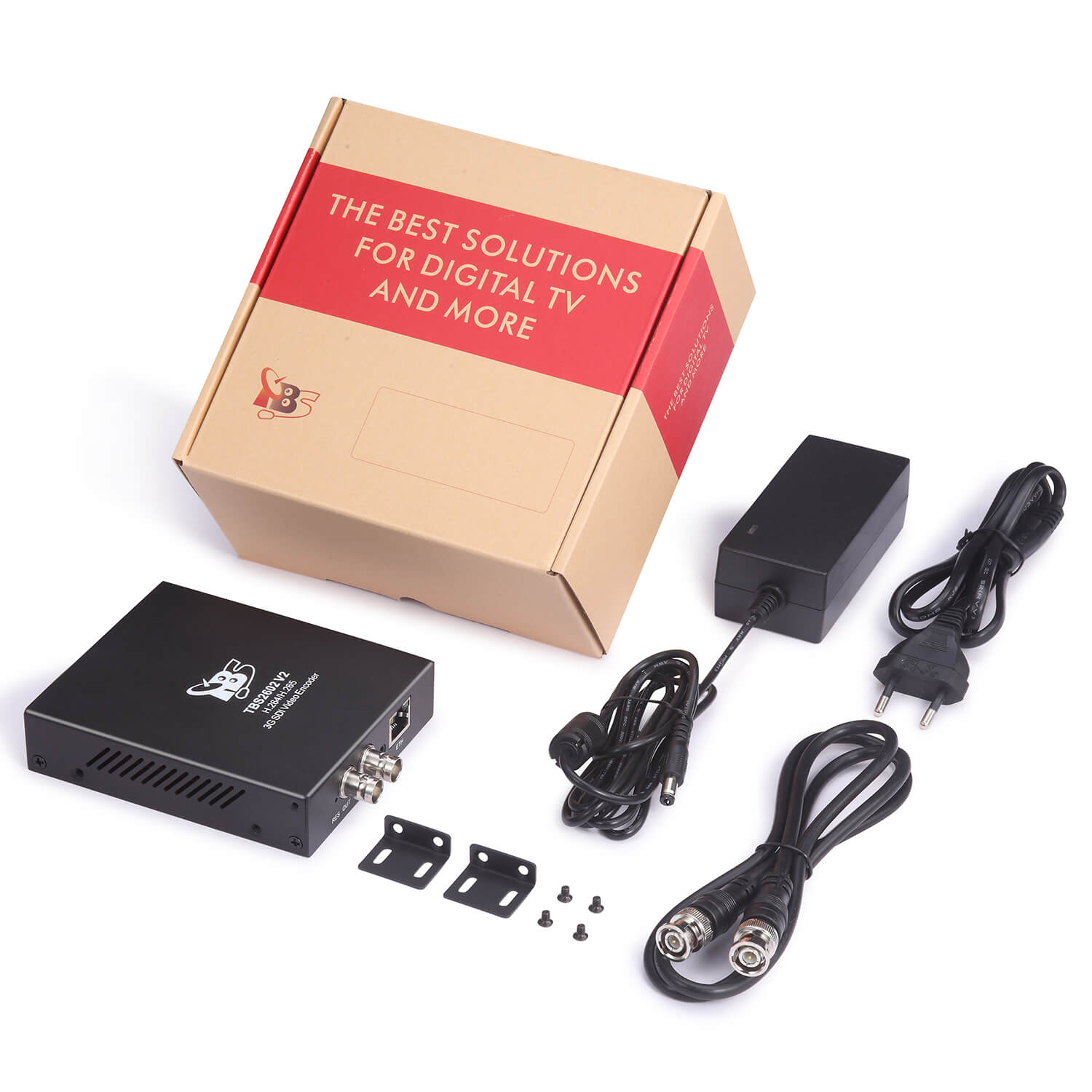

    Package Contents 1x TBS2602V2
    1 x DC 12V power adapter
    1x SDI cable
    1 pair of mounting brackets with mounting screws
