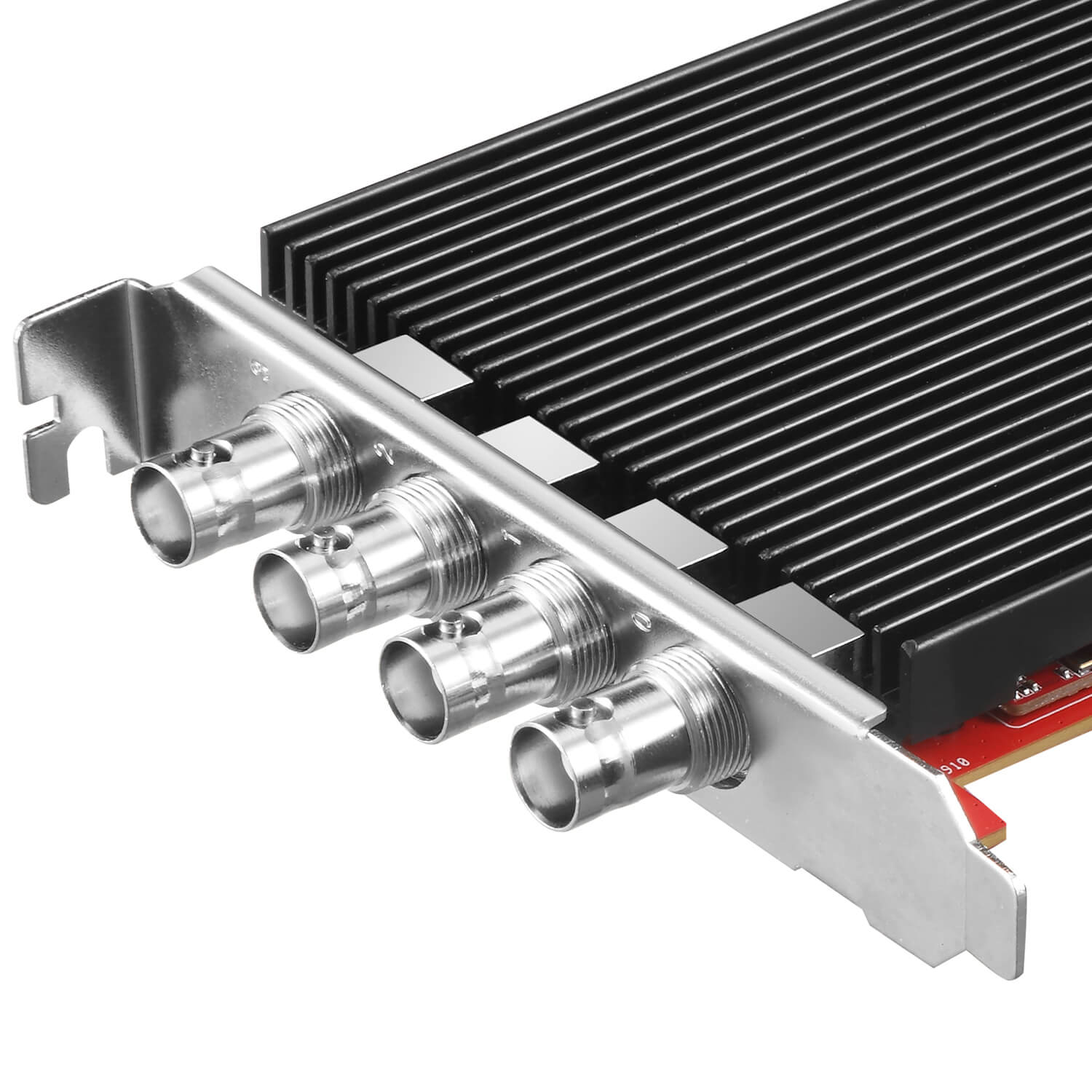

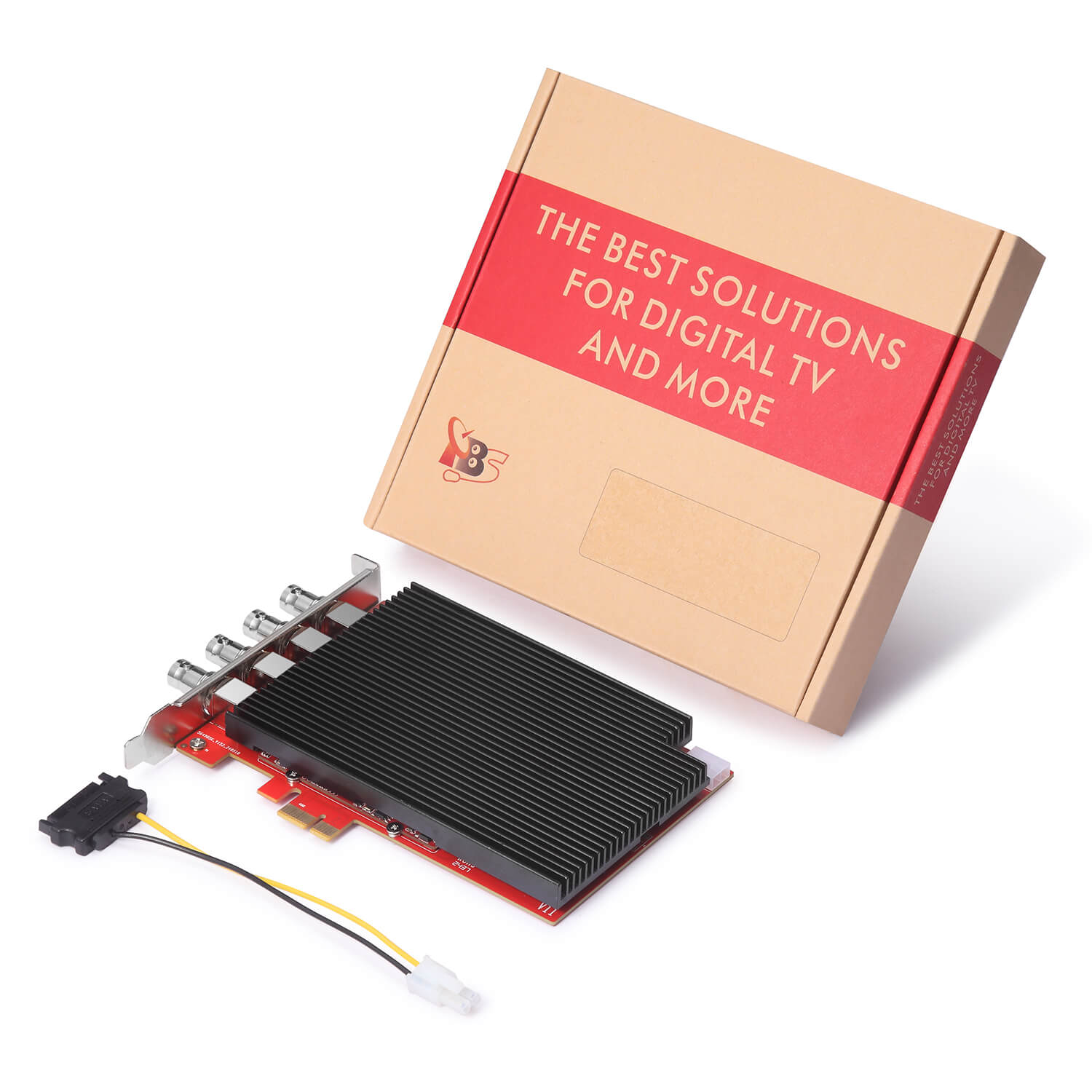

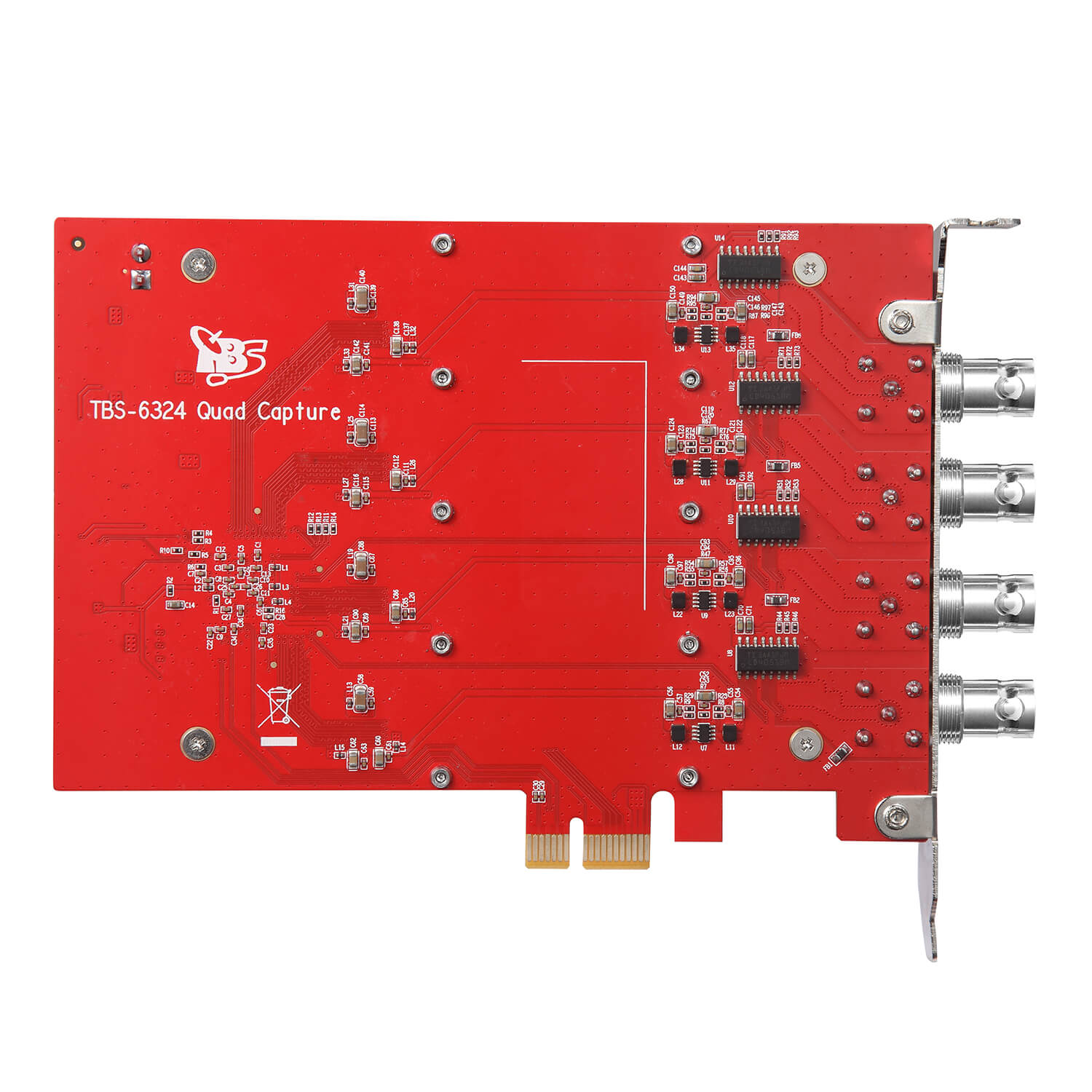

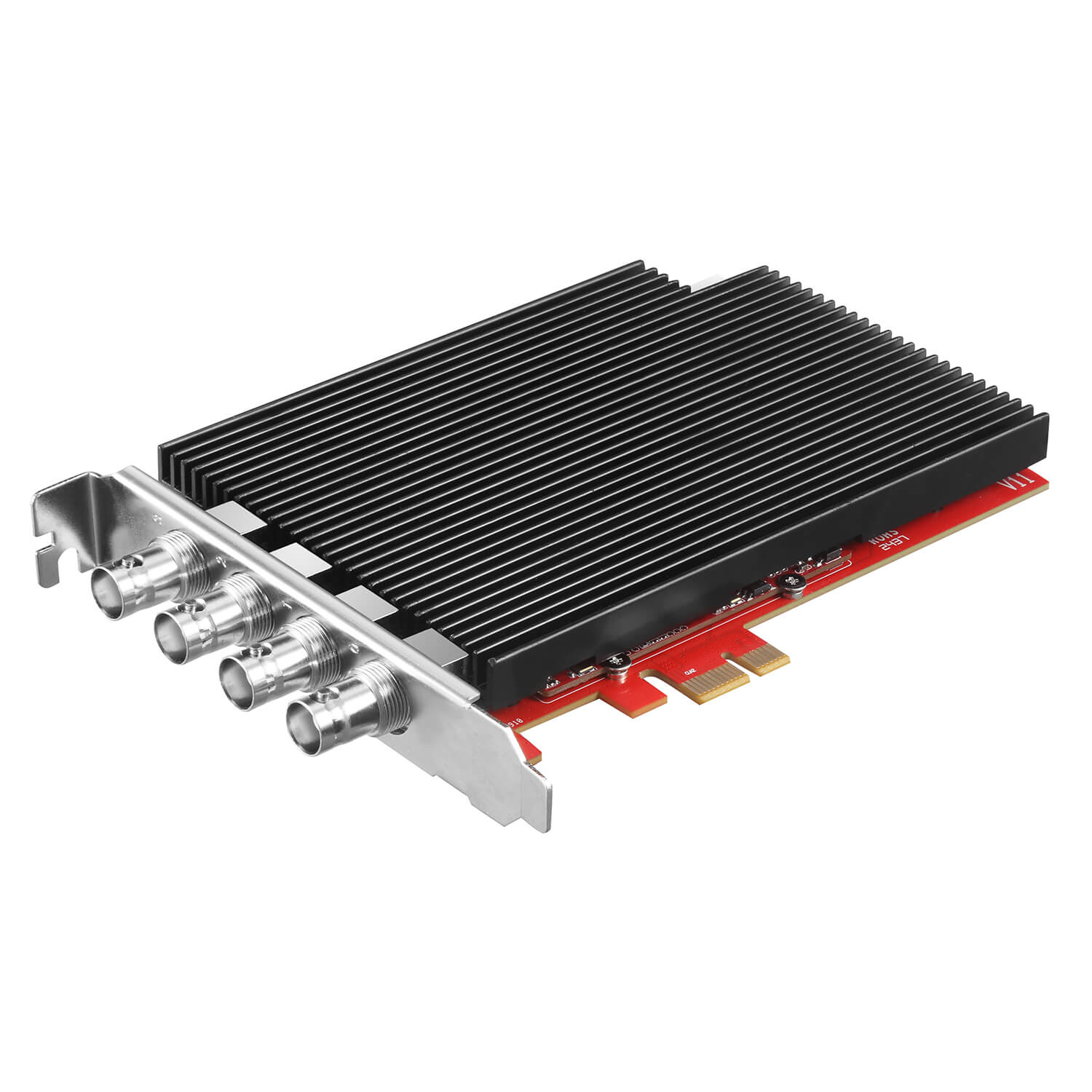

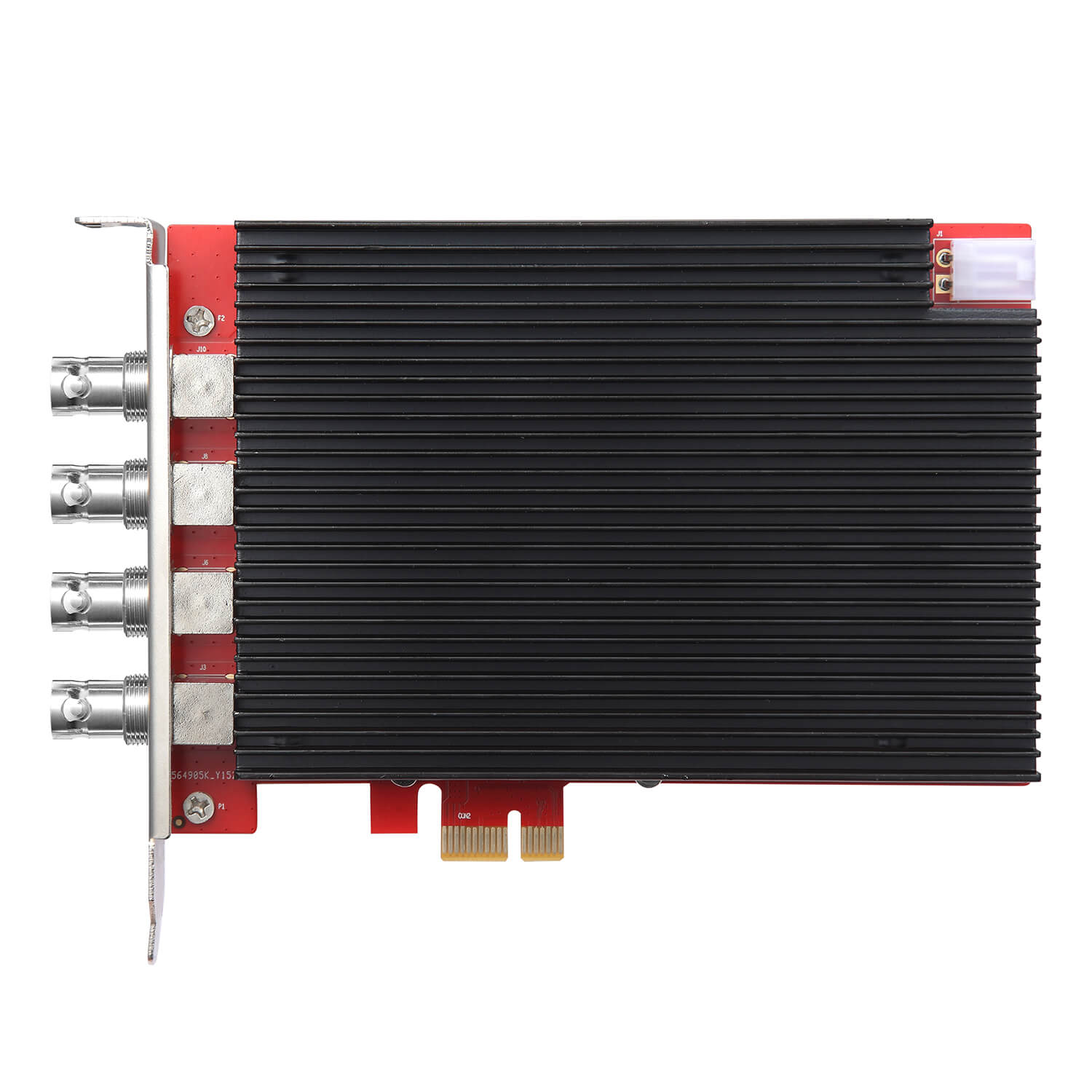

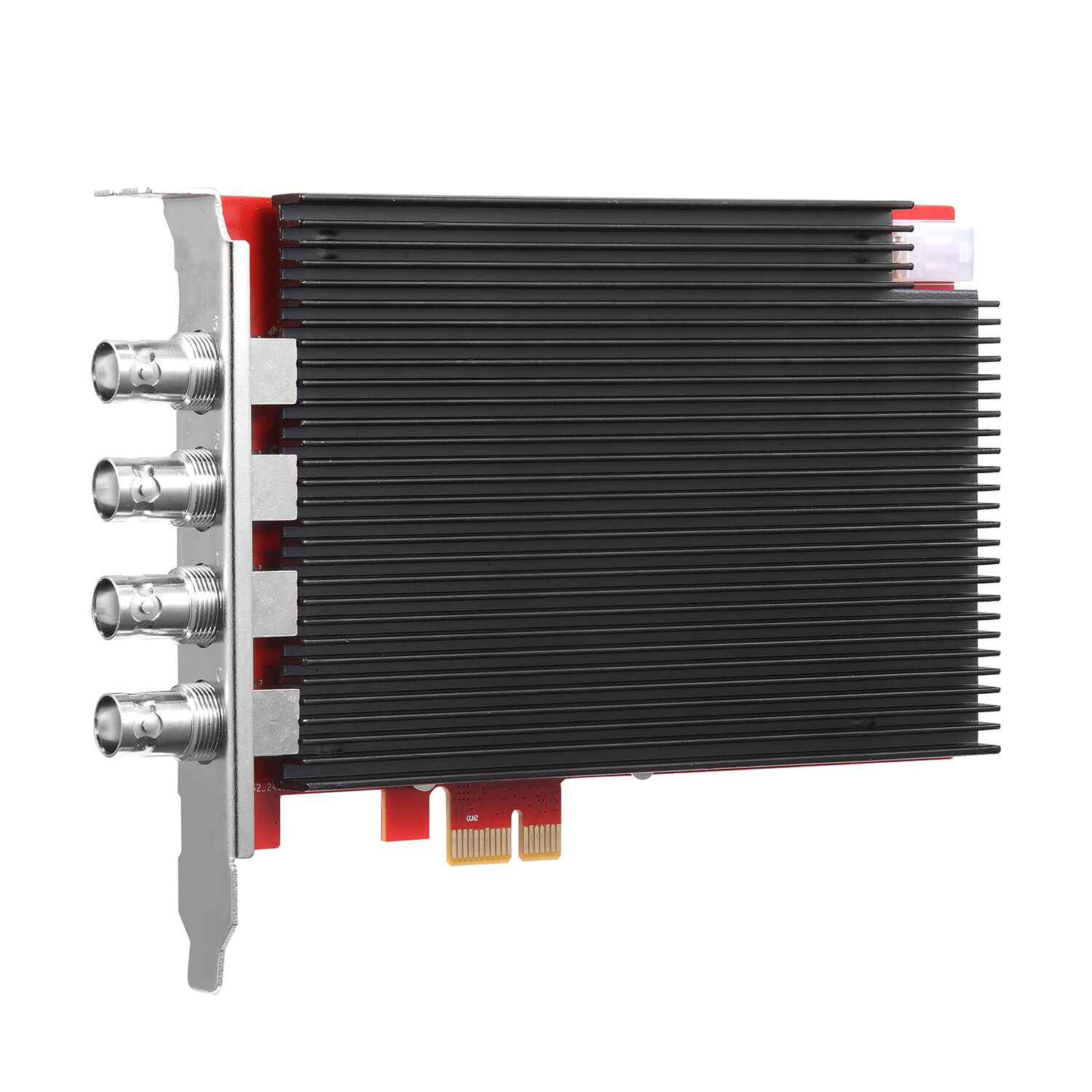

TBS6324 quad 3G-SDI PCIe encoder allows capturing and encoding four separate 3G/HD/SD-SDI sources simultaneously. It supports up to 1080P@60Hz input and H.265/H.264 1080P@60fps video encode. It is an ideal device for those who need to stream lower bit rate video over LAN or WAN networks, often due to internal network constraints, while still maintaining high quality video.

After capturing 3G/HD/SD video from SDI ports, TBS6324 will generate H.264/H.265-encoded stream in TS packet and output via PCIe interface. TBS6324 is based on DVB architecture，so it is compatible with various DVB software such as Kylone，TVheadend, Astra Cesbo, DVB Dream, DVBViewer, TSReader etc.

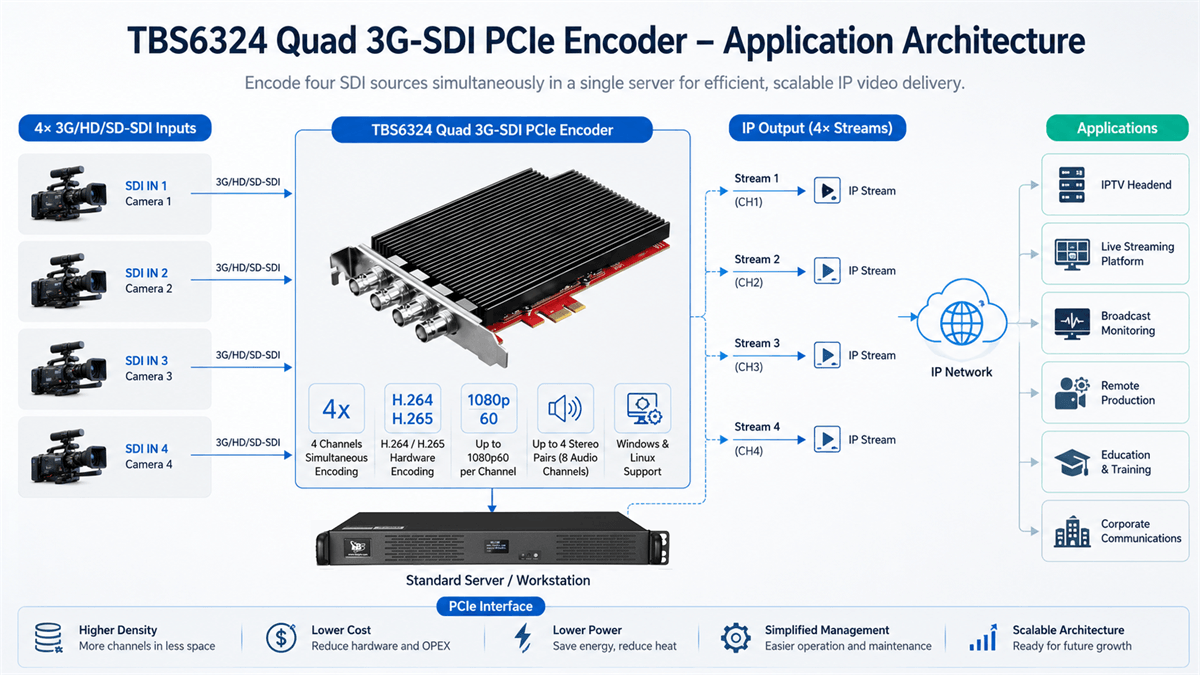

TBS6324 provides versatile and cost-efficient video encoding solution in various industries. It can be used for live production，live streaming, broadcast TV，remote transmission, post-production etc.

Features:

• 4x 3G/HD/SD-SDI input and supports encoding 4x 1080p@60fps at maximum
• Support up to 4 stereo audio tracks (8 channels mono audio) embedded input
• Support H.265/HEVC & H.264/AVC video encoding
• Support AAC-LC/AAC-HE, MP2 audio encoding
• DVB architecture，compatible with DVB software
• Support OSD overlay, including inserting logo/text into video
• Hardware encoding without consuming CPU resources
• Applicable to IPTV systems in multiple industries (e.g. education, healthcare, conference, news interview).
• Compatible with Windows and Linux OS
• High-speed PCIe interface, works with PCI-E x1 / x4 / x8 / x16 slot

Applications:

TBS6324 quad HD/SD/3G-SDI PCIe encoding solution can be applied to many industries such as broadcast TV, video surveillance, business and education，healthcare industries etc.

With easy-to-use TBS encoded setting tool，TBS6324 can easily switch between channels and adjust configurations.

Linux Platform: command line control

Windows Platform: GUI setting tool
